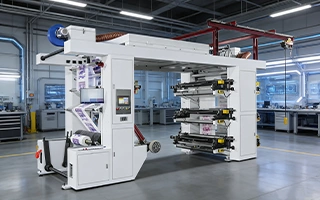

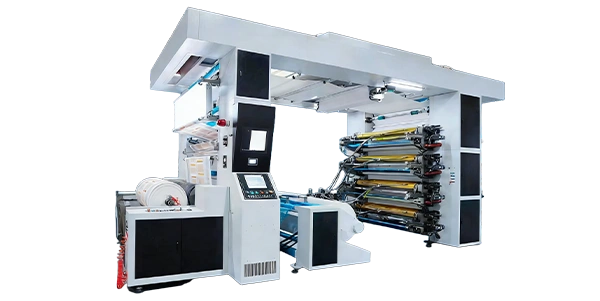

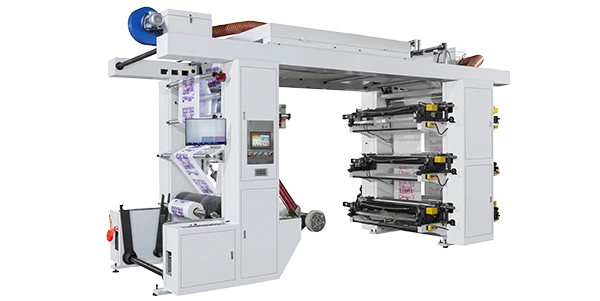

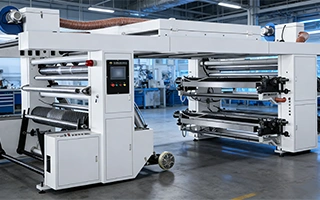

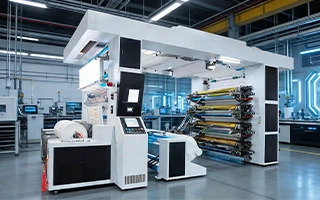

LY-4/6/8C

Heavy-Duty Bridge-Type Flexo Printing Machine

heavy-duty bridge-type flexo printing machine is designed for kraft paper, coated paper, cellophane, nonwoven materials and PP film. Its wide-web structure and independent web-handling system support stable printing across different material widths and production requirements. The machine supports paper weights from 30 to 200 gsm and PP film thicknesses of approximately 30 to 40 microns, making it suitable for food, medical and industrial packaging production.

Printing Speed: Up to 150 m/min

Printing Colors: 4 / 6 / 8 Colors

Printing Widths: 950 to 1550 mm

Registration Accuracy: ±0.15 mm

Please share your material, web width, color count and target printing speed.

Get a Tailored Quote>

Feature

Specifications

Details

Product Introduction

The bridge-type structure, independent web handling and configurable printing units support reliable production across paper, film and nonwoven materials.

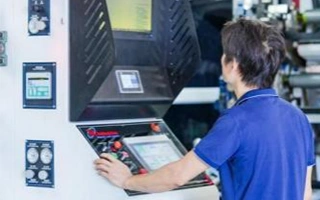

PLC and Touchscreen Control
The centralized control interface simplifies machine setup, operating adjustments and production monitoring.
Enclosed Doctor Blade System
The enclosed chamber doctor blade and automatic ink supply support controlled ink transfer and cleaner operation.
Ceramic Anilox Rollers
Ceramic anilox rollers provide wear resistance and consistent ink delivery for stable print density.
Flexible Roll Handling
Multiple unwind and rewind configurations can be selected according to the substrate, roll size and production route.
Independent Web Control
Pre-press and post-press traction help maintain stable material transport and reduce web variation.
Printing Inspection Option
A video inspection system can support real-time monitoring of print quality during production.
Optional Back-Side Printing
Optional two-side printing can be configured according to the required production process.

Specifications

Model	LY-1000	LY-1200	LY-1400	LY-1600
Printing Colors	4/6/8 Colors	4/6/8 Colors	4/6/8 Colors	4/6/8 Colors
Maximum Web Width	1000 mm	1200 mm	1400 mm	1600 mm
Maximum Printing Width	950 mm	1150 mm	1350 mm	1550 mm
Printing Repeat Length	280 to 1000 mm	280 to 1000 mm	280 to 1000 mm	280 to 1000 mm
Registration Accuracy	±0.15 mm	±0.15 mm	±0.15 mm	±0.15 mm
Mechanical Speed	50 to 180 m/min	50 to 180 m/min	50 to 180 m/min	50 to 180 m/min
Printing Speed	50 to 150 m/min	50 to 150 m/min	50 to 150 m/min	50 to 150 m/min
Maximum Unwind Diameter	Up to 1500 mm	Up to 1500 mm	Up to 1500 mm	Up to 1500 mm

Note: Available specifications and production speed may vary according to the substrate, printing configuration, ink system and drying requirements.

Product Details

LY-4C Four-Color Configuration

LY-6C Six-Color Configuration

LY-8C Eight-Color Configuration

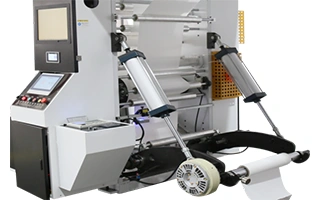

Angled Unwind Configuration

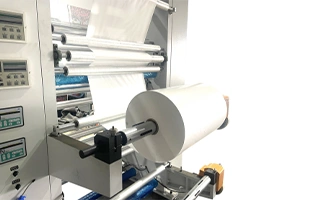

Standard Unwind Configuration

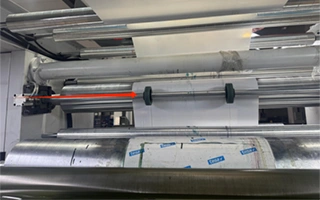

Pre-Press Web Guiding

Pre-Press Traction Unit

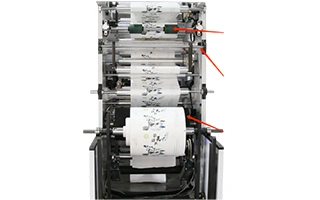

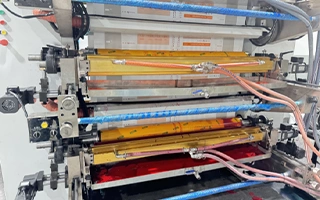

Printing Unit

Automatic Ink Supply

Enclosed Doctor Blade and Ceramic Anilox Roller

Helical Gear Transmission

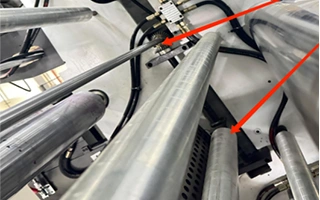

Hydraulic Plate-Cylinder Locking

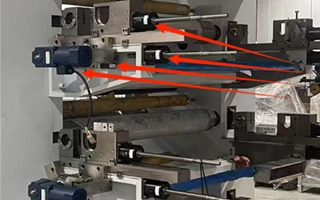

Electric Vertical and Longitudinal Registration Adjustment

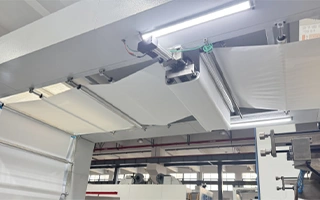

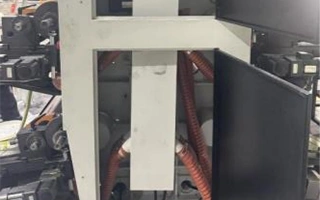

Inter-color Drying

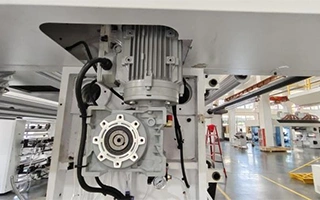

Main Motor

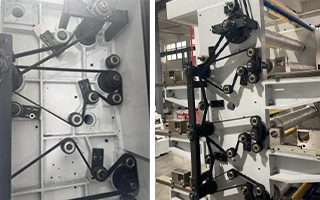

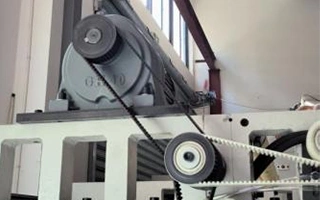

Synchronous Belt Drive

Oven Length: 2.5m

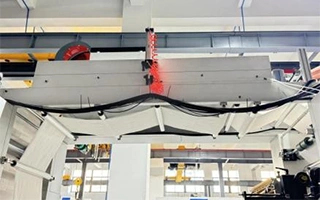

Real-Time Monitoring for Printing Quality Inspection

Post-Printing Independent Traction Motor

Post-Press Traction, Dancer-Arm Tension Control and Friction Rewinding

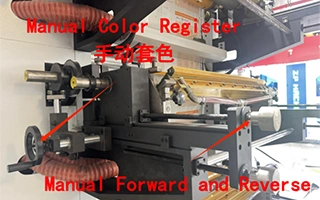

Manual Color Registration and Longitudinal Adjustment

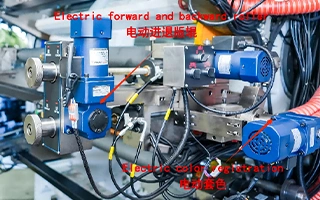

Electric Color Registration and Longitudinal Adjustment
