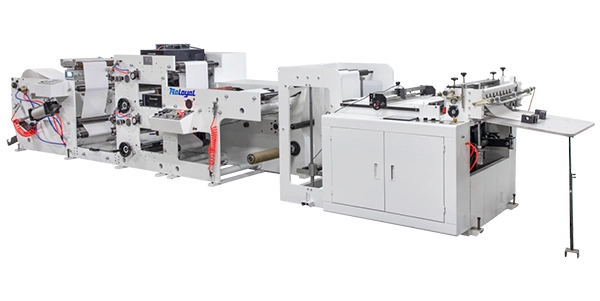

Cost-effective vertical stack presses for paper cups, burger wrappers, and self-adhesive labels – with 360° register adjustment and optional inline converting.
Max. Speed
Registration Precision:
Colors Available
Web Width
It is suitable for laminated material, food packaging material, medical product, stickers, paper, paper cup, printing paper, thermal paper, paper board, high-grade self-adhesive label, bopp film, etc. and so on.
Max. Printing speed：120m/min (depends on material)
Printing color：1-9color
Max. Printing width：840-1240mm
Max. Unwinding diameter：600/1000mm
Max. Printing speed：120m/min (depends on material)
Printing color：1-9color
Max. Printing width：310-510mm
Max. Unwinding diameter：600/1000mm
Max. Printing speed：120m/min (depends on material)
Printing colors：1-9color
Max. Printing width：310-1240mm
Max. Unwinding diameter：600/1000mm
Imported frequency main motor – stable speed regulation.

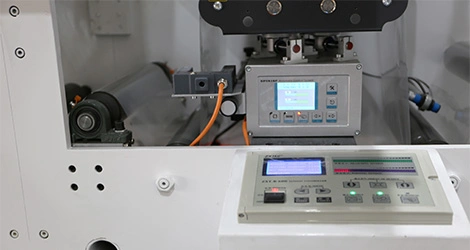

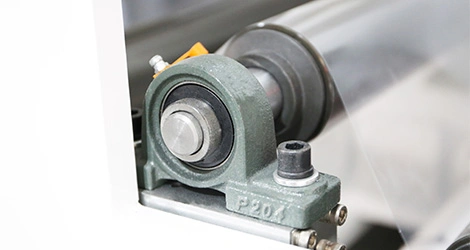

Automatic tension control for unwinding.

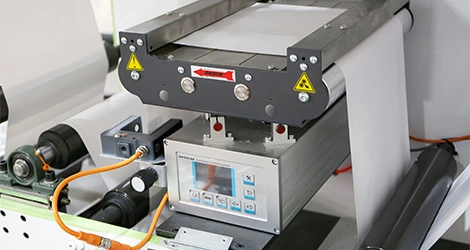

Ultrasonic web guide – auto deviation correction.

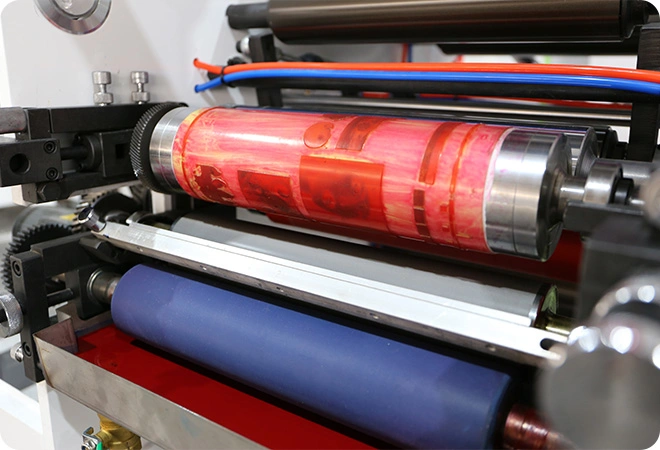

Ceramic anilox roller – wear and corrosion resistant.
360° weekly alignment – individual unit disengagement.
Automatic metering – consistent ink delivery.
PLC touch screen – easy operation.

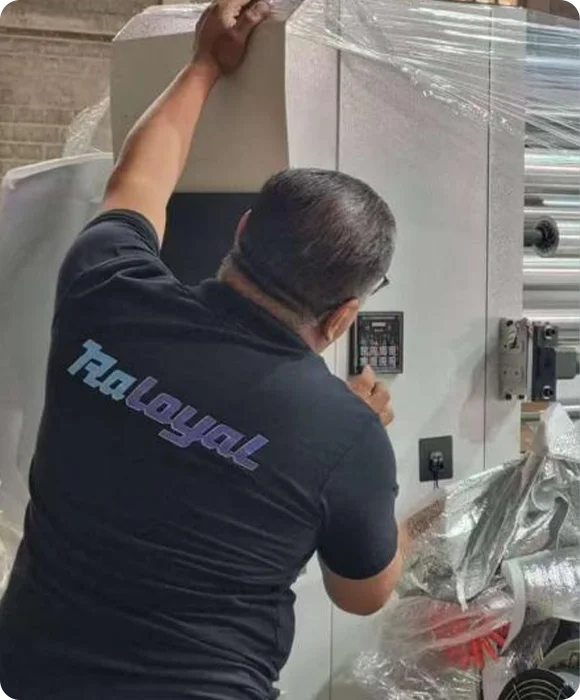

Raloyal commits to its customers: we provide not only a 1-year guarantee but also lifelong service support.
For machine setup, customers have two options after receiving the machine:
1: Raloyal provides operation videos, drawings, manuals, and other materials.Most customers have learned the operation well through these resources.
2 : Raloyal arrange the service technician to customer factory for machine set up and trainning.
For the parts supply, Raloyal promise we will provide customer the machine parts (Raloyal machine) for lifelong time, which means any time you need part, we are here.
A: Stack flexo presses can be configured for paper, paper cup stock, kraft paper, labels, wrapping materials and selected packaging films. The suitable model depends on the substrate, printing width, color count, repeat length and required finishing processes.
A: A stack press arranges printing units vertically and provides flexible color and material configurations. An inline press arranges printing and converting stations horizontally in one production line and is more suitable when die cutting, laminating, stamping or other converting processes are central to production.
A: A CI press uses one central impression drum to support the substrate through all printing stations and is generally preferred for high-speed printing on stretch-sensitive films. A stack press uses separate impression sections and is commonly selected for paper, labels and general packaging applications with moderate speed and registration requirements.
A: Yes. Selected stack flexo press configurations can print paper cup stock, coated paper and other paper packaging materials in roll form. The paper weight, coating, web width, ink type and downstream sheeting or cup-forming process should be confirmed before configuration.
A: Yes. Narrow- and medium-width stack presses can be configured for self-adhesive label materials, paper labels and selected film labels. Optional corona treatment, laminating, die cutting, slitting and rewinding can be added according to the label production process.
A: Depending on the model, optional functions may include back-side printing, varnishing, laminating, corona treatment, die cutting, slitting, cross cutting, conveyor delivery, web turning and turret rewinding.

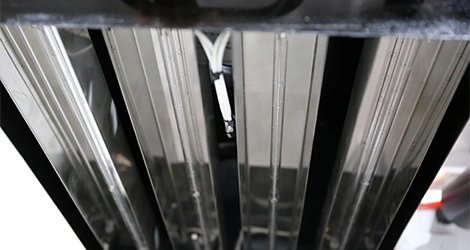

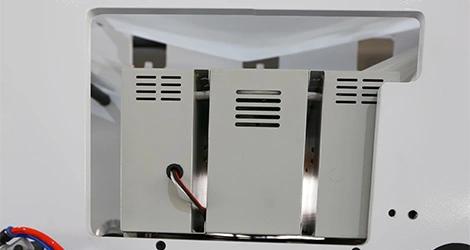

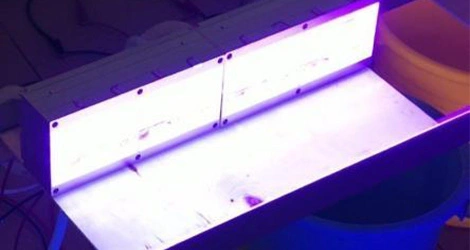

A: Stack flexo presses can be configured for water-based, solvent-based, UV or LED UV inks. Available drying systems may include IR, hot air, UV and LED UV. The correct combination depends on the substrate, production speed and finished-product requirements.
A: Yes. Available color groups, web widths, printing widths and repeat-length ranges vary by model. Please provide the substrate, finished product size, color count, repeat length, ink type and required finishing processes so that a suitable configuration can be recommended.
