Paper Cup Stack Flexo Printing Machine

Designed for paper cup stock, coated paper and other paper packaging materials, the RY stack flexo printing machine supports stable multi-color printing with flexible web widths and configurable post-print processes. Optional units include back-side printing, varnishing, web turning, slitting, sheeting, conveyor delivery and turret rewinding.

Printing Speed: Up to 120 m/min

Printing Colors: 1 to 9 Colors

Printing Widths: 840 to 1240 mm

Registration Accuracy: ±0.10 mm

Please share your paper type, web width, color count and required finishing processes.

Get a Tailored Quote>

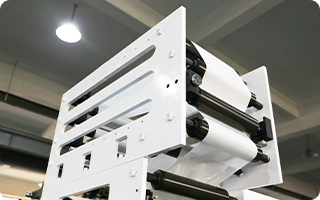

Back-Side Printing Unit

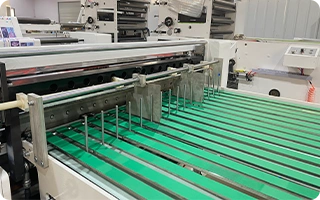

Sheeting and Conveyor Delivery

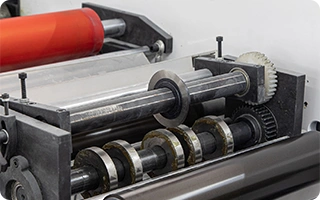

Inline Slitting Unit

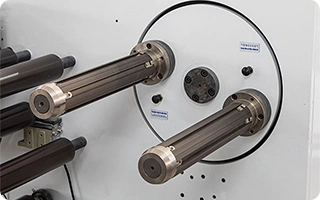

Turret Rewinding System

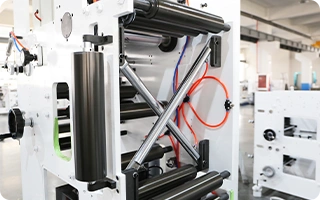

Web Turning Unit

High-Speed CI Flexo Printing Machine>>

Stable, high-quality flexographic printing for film, paper, laminates and nonwoven materials. The central impression design supports consistent web tension, accurate registration and reliable printing at speeds up to 300 m/min.

CORE Series Wide Web Slitting Machine>>

This PI film slitting machine is suitable for the slitting of metallic material: aluminum foil, copper foil, PET CCL, PPE, Personal protective gowns, medical gowns, BOPP, PET, CPP, PE, PVC, film, paper, PSP DPP Paper, etc.

Industry Insights and Latest Blogs

Is Upgrading to a High-Speed Jumbo Roll Slitter Actually Worth the ROI for Mid-Sized Converters?

News

May 29, 2026

For mid-sized converters, the "growth trap" is a familiar scenario: your order book is full, and your sales team is bringing in new clients, but your production floor is struggling to keep up. You are running 24/7, yet lead times are slipping.

PTFE Slitting Challenge | Customer Testing

News

May 28, 2026

Today, we tested a special PTFE material for our customer. The challenges: Stretchable and fragile film. Minimum slitting width required: 10mm. To achieve this, we used our CORE SERIES Surface Coiling Slitt...

HCH3-1300R2/1600R2 Paper Film Double Shaft Rewinding Machine, Your Best Choice for Slitting Solutions

News

May 28, 2026

The raw materials you can convert include, but are not limited to, paper, film, and adhesive material. In terms of paper, you can slit offset paper, thermal paper, Paperboard, with a thickness that can reach 1mm or more, Sublimation transfer paper...

From printing to post-production, we offer a one-stop solution to meet your production needs

Our team of engineers is always ready to provide you with professional consultation and tailor the optimal configuration according to your specific application.

Model	RY
Maximum Printing Speed	Up to 120 m/min, depending on the substrate
Printing Colors	1 to 9 Colors
Maximum Web Width	850 / 950 / 1050 / 1150 / 1250 mm
Maximum Printing Width	840 to 1240 mm
Maximum Unwind Diameter	600 / 1000 mm
Power Supply	380 V, 3 Phase, 50 Hz
Printing Repeat Length	180.975 to 450.85 mm or 222.25 to 600.075 mm
Registration Accuracy	±0.10 mm
Drying Options	IR / Hot Air / UV / LED UV
Compatible Ink Types	Water-Based / Solvent-Based / UV / LED UV
