Max. Slitting speed：300 m/min
Unwinding width：650/1300/1600mm
Slitting thickness：12g/m²~300g/m²
This machine is suitable for the slitting of straw paper, aluminum foil, copper semiconductor, PET CCL, PPE, Personal protective gowns, medical gowns, BOPP, PET, CPP, PE, PVC, film, paper, DPP Paper, PSP Paper, Edge band, bond paper, matte couche, paper semi-gloss paper, thermal transfer paper, direct thermal paper, metallized paper, cardboard paper, thermal cardboard, processing mica tape, presspaper, carrier tapes, PVDC film, petg film and composite insulation materials, DMD material, Aluminum foil paper, clear pp, linerless label, NMN material, anti scratch lamination tape,soft touch lamination tape, laser lamination tape, cantilevel type, PTFE film, composite Copper Foil, cu/Al Composite Foil, pre-lithiated Foil, nomex paper, electrical Insulation Paper, fishpaper, opaque & metallized laminating film, pressure sensitive label film, wear-resistant film, Barrier Film, Adhesive Tape Base Film, Tobacco and Cigarette Overwrap Packaging Film, Craft paper, Insulating material, glass fiber UD prepreg, thermoplastic fiber UD tape, smoked aluminum foil, fiber cloth and cellophane fiberglass material, DDP, Diamond Dotted Paper DDP, myler, bistage etc.
|
Machine model |
HC-C650B |
HC-C1300B |
HC-C1600B |
|
Unwinding width |
650mm |
1300mm |
1600mm |
|
Slitting thickness |
12g/m2~300g/m2 |
12g/m2~300g/m2 |
12g/m2~300g/m2 |
|
Standard slitting width |
5~650mm |
5~1300mm |
5~1600mm |
|
Max slitting speed (depends on material) |
300m/min |
300m/min |
300m/min |
|
Unwinding roll diameter |
Φ600mm |
Φ1000mm |
Φ1000mm |
|
Rewinding roll diameter |
Φ600mm |
Φ600mm |
Φ600mm |
|
Main motor power |
3kw |
7.5 kw |
7.5 kw |
|
Rewinding motor power |
2×3kw |
2×7.5kw |
2×7.5kw |
|
Machine weight |
2500kg |
3000kg |
3500kg |
|
Installation dimension |
2500*1850*1800mm |
3150*2500*1800mm |
3150*2800*1800mm |
|
Advantages
|
Basic Configuration
|
|
• Servo motor control, automatic taper tension, the center surface coiling method; • Automatic meter, alarm, and other functions; • Rewinding using an A, B inflatable shaft structure, • Unwinding using the optical edge correction method; • Round knife (film using flat knife structure), • Pneumatic automatic shaft / hydraulic automatic |
• Slitting thickness • Servo motor control • Slitting knife • Rubber roll • Safty cover • Splicing table • Meter counter • Web guide |

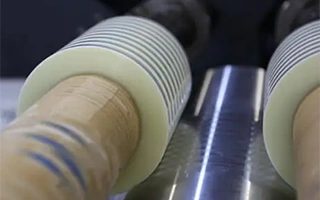

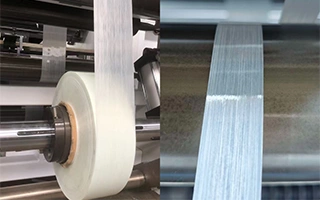

Slitting Results
Slitting Results

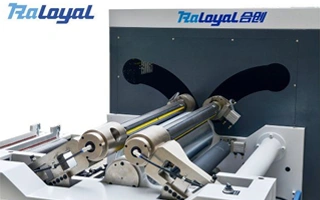

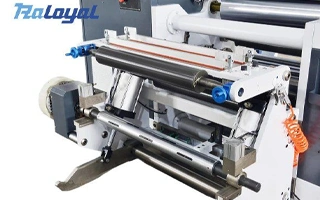

Unwinding Section
Rewinding Section

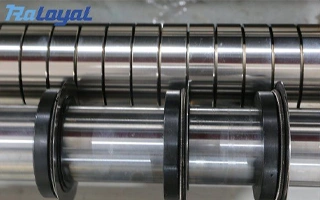

SItting Knife

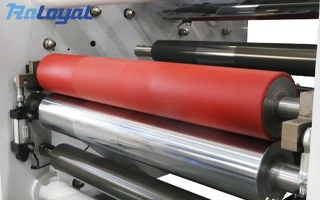

Rubber Roll

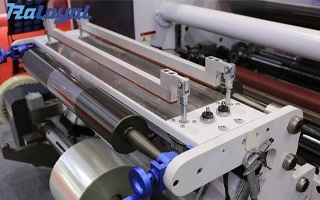

Splicing Table
Safty Cover

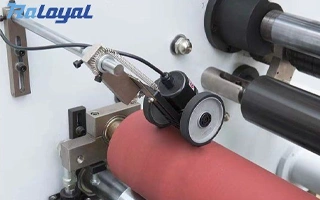

Meter Counter

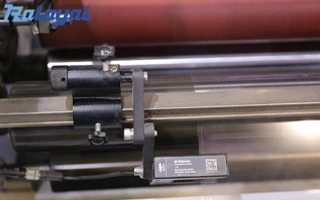

Web Guide
