The stack-type design offers unmatched flexibility: each printing unit is independently operated,allowing you to run fewer colors or engage/disengage units without stopping the machine.
Max. Speed
Slitting Precision
Max. Web Width
Max. Unwinding Diameter
heavy-duty frames, precision ground shafts, and servo-driven tension control. The result: clean cuts, consistent roll hardness, and trouble-free operation even at high speeds.
Max. Slitting speed：300 m/min
Unwinding width：650/1300/1600mm
Unwinding diameter：∅600/∅1200mm
Rewinding diameter：∅600mm
Max. Slitting speed：300m/min
Unwinding width：1300/1600mm
Unwinding diameter：∅1000mm
Rewinding diameter：∅800mm
Max. Slitting speed：300m/min
Unwinding width：1300/1600mm
Unwinding diameter：∅1200mm
Rewinding diameter：∅300mm
Max. Slitting speed：500 m/min(depends on material)
Unwinding width：1300/1600mm
Unwinding diameter：∅1200mm
Rewinding diameter：∅800mm
Max. Slitting speed：400m/min
Unwinding width：1300/1600mm
Max. rewinding dia：∅600mm
Slitting precision：±0.10mm
Max. Slitting speed：600m/min
Unwinding width：1300/1600/2200mm
Max. rewinding dia：∅800mm
Slitting precision：±0.10mm
Max. Slitting speed：100m/min
Unwinding width：1300/1600mm
Max. rewinding dia：∅800mm
Laminating Dia：∅300mm
Max. Slitting speed：600m/min
Unwinding width：1300/1600mm
Max. rewinding dia：∅600/∅800mm
Slitting precision：±0.10mm

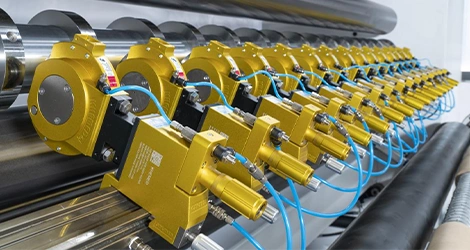

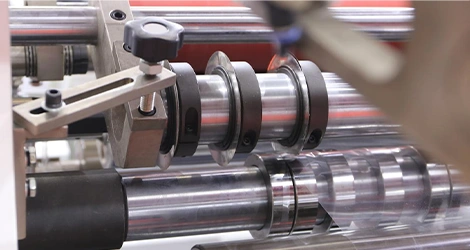

Three slitting methods: razor, shear, and crush – fit your material.
Automatic tension control – constant roll density.

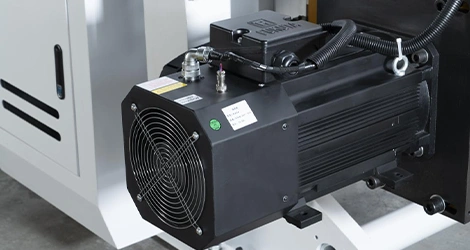

Servo-driven rewinding – precise roll diameter control.
Cantilevered rewind shafts – easy roll removal.
Laser or ultrasonic edge guide – accurate web positioning.
Waste rewinding unit – clean production environment.
Touchscreen PLC control – simple operation.
First, we fix the machine on fumigation-free wooden pallets at the bottom. Second, the exterior of the machine is wrapped with foam, cardboard and stretch film.
Spare parts qty is sufficient for you with machine together. The price of spare parts exceeding the guarantee would be at lowest ex-factory price for you.
We provide operation manuals, tutorial videos, electrical drawings and after-sales maintenance documents. When needed, we will create a dedicated group with the your operators, including our professional after-sales technicians and relevant supervisors. You can raise questions at any time, and we will respond as soon as we see it. On-site installation and commissioning services are also available upon request. Raloyal offers lifelong technical support.
As usual, the payment term is TT, 30% deposit, the balance after machinetesting and before delivery,the LC at sight is also acceptable for us.
Machine as usual is integrated and we do not dismantle before delivery. So just connect the power cable and air pipe is ok.
For the operation, we take instruction video for all customers before delivery to guide you how to operate, and provide the instruction file. Also, we provide service: our engineer and technician open live training until you learned it and run it well.
Automatic unloading by chain.
Turn Materials
into High-Value Products
Is Upgrading to a High-Speed Jumbo Roll Slitter Actually Worth the ROI for Mid-Sized Converters?
May 29, 2026 For mid-sized converters, the "growth trap" is a familiar scenario: your order book is full, and your sales team is bringing in new clients, but your production floor is struggling to keep up. You are running 24/7, yet lead times are slipping.
PTFE Slitting Challenge | Customer Testing
May 28, 2026 Today, we tested a special PTFE material for our customer. The challenges: Stretchable and fragile film. Minimum slitting width required: 10mm. To achieve this, we used our CORE SERIES Surface Coiling Slitt...

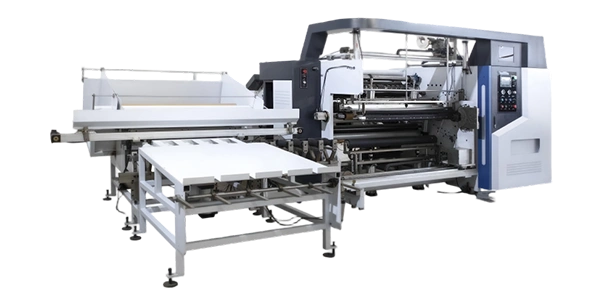

HCH3-1300R2/1600R2 Paper Film Double Shaft Rewinding Machine, Your Best Choice for Slitting Solutions
