Max. Slitting speed：300 m/min
Unwinding width：1300/1600mm
Rewinding diameter：∅800mm
Widely used for paper (30-300gsm), Silicon Coated Paper, Self-adhesive Paper, Laminate films, OCA, Optical film, PET film, etc., rewinding.
Advantages
|
Machine model |
HCH2-1300R |
HCH2-1600R |
|
Rewinding speed |
300m/min |
300m/min |
|
Unwinding width |
1300mm |
1600mm |
|
Unwinding diameter |
Φ1000mm |
Φ1000mm |
|
Rewinding diameter |
Φ800mm |
Φ800mm |

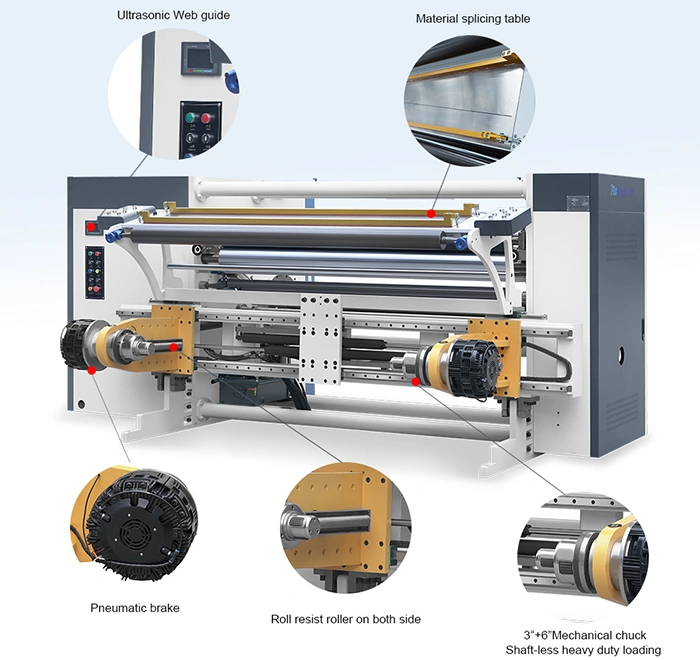

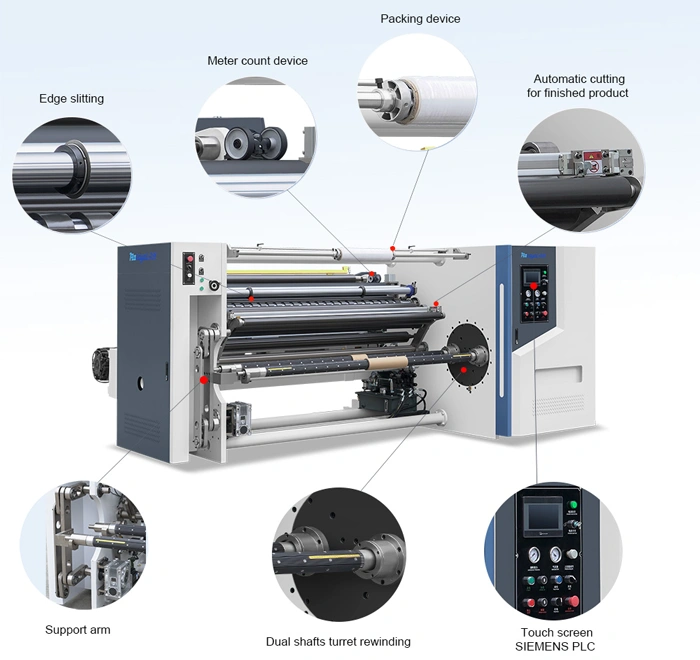

Basic Configuration
Servo motor control
Splicing table
Meter counter
3" + 6" Mechanical Chucks, Automatic Hydraulic Loading
Ultrasonic Servo Automatic Web Guiding System
Automatic knife cutting
Slitting Results
Slitting Results
Slitting Results
