Max. Slitting speed：600m/min
Unwinding width：1300/1600mm
Thickness Range：0.012-0.2mm
Application Industry: Labels, Flexible packaging, Plastic film medical packaging, Food flexible packaging, Consumer goods soft packaging, Non-woven fabrics, Functional Films, Optical Thin Films.
Advantages
|
Machine Model |
PRO 1300 |
PRO 1600 |
|
Slitting speed |
600m/min |
600m/min |
|
Unwinding width |
1300 |
1600 |
|
Unwinding Dia. |
∅1200mm |
∅1200mm |
|
Max. Rewinding Dia. |
∅600mm |
∅800mm |
|
Slitting Precision |
±0.10mm |
±0.10mm |
|
Min. Slitting Width |
70mm |
70mm |
|
Thickness Range |
0.012-0.2mm |
0.012-0.2mm |
Basic Configuration
8 sets servo motor control

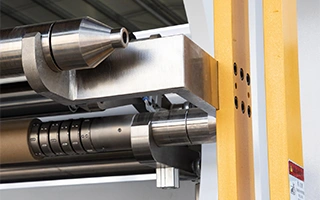

3" + 6" Mechanical Chucks, Automatic Hydraulic Loading
Ultrasonic Servo Automatic Web Guiding System
Rewinding diameter up to 800mm
4-shaft turret

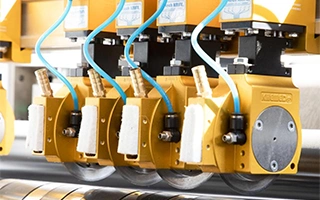

Fully auto blade set
Auto knife cutting
Auto Discharge Rack
Slitting Results
Scientific Electrical Architecture
Superb System Integration Design

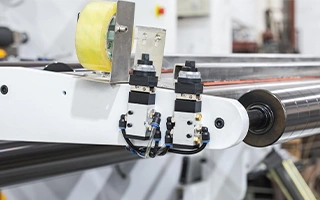

Tape Cutting Device

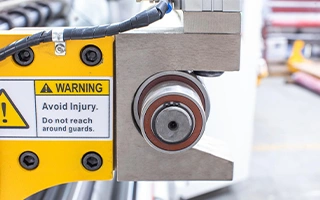

Japan Nsk Bearing

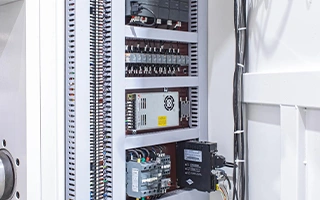

Clean, Clear, Safe, Perfect Wiring
Web Guide Driver, Servo Motor Control

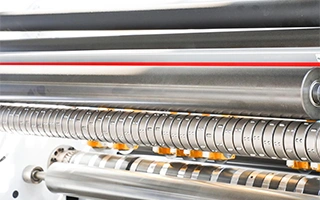

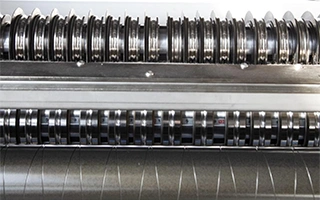

Rotary Knife

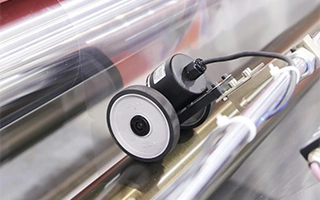

KOREA AUTONICS Automatic Metering
Rewinding Support Arm Backward After Work Finished

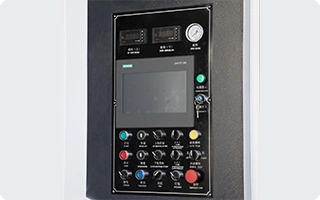

Siemens Touch Screen
Auto Laser Core Positioning, Synchronously Work with Semi-Auto Blade Set
Static Eliminator
Air Knife
