Label Stack Flexo Printing Machine

Designed for labels and narrow-web packaging materials, the RY stack flexo printing machine combines multi-color printing with configurable converting processes in one production line. Optional units include corona treatment, laminating, back-side printing, varnishing, die cutting, slitting, sheeting, turret rewinding and web turning.

Printing Speed: Up to 120 m/min

Printing Colors: 1 to 9 Colors

Printing Widths: 310 to 510 mm

Registration Accuracy: ±0.10 mm

Please share your label material, web width, color count and required converting processes.

Get a Tailored Quote>

Feature

Specifications

Details

Product Introduction

Ceramic Anilox Printing System
Ceramic anilox rollers provide wear resistance, corrosion resistance and consistent ink transfer for stable label printing.
Independent Printing Units
Each printing unit can be engaged or disengaged independently, allowing unused stations to remain idle while other colors continue printing.
360° Registration Adjustment
Full circumferential registration adjustment supports accurate print positioning across different repeat lengths.
Automatic Ink Metering
Automatic ink metering helps maintain controlled ink delivery and consistent print density during production.
PLC and Touchscreen Control
The PLC and touchscreen interface simplify machine setup, operating adjustments and production monitoring.
Optional Converting Processes
The line can be configured with corona treatment, laminating, die cutting, slitting, sheeting, back-side printing and turret rewinding.

Specifications

Model	RY
Maximum Printing Speed	Up to 120 m/min, depending on the substrate
Printing colors	1-9colors
Maximum Web Width	320 / 420 / 520 mm
Maximum Printing Width	310 to 510 mm
Maximum Unwind Diameter	600 / 1000 mm
Power Supply	380 V, 3 Phase, 50 Hz
Printing Repeat Length	180.975 to 450.85 mm or 222.25 to 600.075 mm
Registration Accuracy	±0.10 mm
Drying Options	IR / Hot Air / UV / LED UV
Compatible Ink Types	Water-Based / Solvent-Based / UV / LED UV

Note: The available printing repeat range depends on the selected plate cylinder, gear pitch and machine configuration. Please confirm the required repeat length before ordering.

Product Details

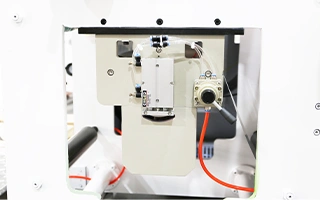

Corona Treatment Unit

Inline Die-Cutting Unit

Back-Side Printing Unit

Sheeting and Conveyor Delivery

Inline Slitting Unit

Inline Laminating Unit

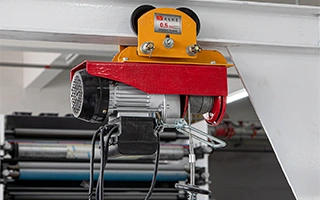

Electric Magnetic-Cylinder Hoist

Turret Rewinding System

Web Turning Unit
