Burger Wrapper Stack Flexo Printing Machine

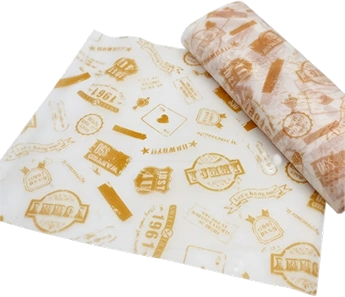

The RY burger wrapper stack flexo printing machine is designed for food wrapping paper, greaseproof paper, coated paper and related paper packaging materials. It supports 1 to 9 colors and can be configured for narrow- or wide-web production according to the finished wrapper size. Optional processes include back-side printing, varnishing, web turning, slitting, cross cutting, conveyor delivery and turret rewinding, allowing printing and downstream converting to be combined in one production line.

Printing Speed: Up to 120 m/min

Printing Colors: 1 to 9 Colors

Printing Widths: 310 to 1240 mm

Registration Accuracy: ±0.10 mm

Please share your paper type, web width, color count, repeat length and required finishing processes.

Get a Tailored Quote>

Feature

Specifications

Details

Product Introduction

Ceramic Anilox Printing System
Ceramic anilox rollers, precision plate cylinders and impression rollers support controlled ink transfer and consistent print quality.
Heavy-Duty Steel Frame
The printing-unit side frames are manufactured from 20 mm 45# steel plate to improve structural rigidity and help reduce vibration during production.
Independent Inter-Color Drying
Each printing station can be equipped with an independent drying unit to support controlled drying between colors.
Multiple Drying Options
Available drying systems include IR, hot air, UV and LED UV, selected according to the substrate, ink and production speed.
Flexible Color and Width Configurations
The machine supports 1 to 9 colors and multiple web widths for burger wrappers, food wrapping paper and related packaging products.
Optional Inline Converting
Back-side printing, varnishing, web turning, slitting, cross cutting, conveyor delivery and turret rewinding can be configured according to the production process.

Specifications

Model	RY
Maximum Printing Speed	Up to 120 m/min, depending on the substrate and configuration
Printing Colors	1 to 9 Colors
Maximum Web Width	320 / 420 / 520 / 650 / 850 / 950 / 1050 / 1150 / 1250 mm
Maximum Printing Width	310 to 1240 mm
Maximum Unwind Diameter	600 / 1000 mm
Power Supply	380 V, 3 Phase, 50 Hz
Printing Repeat Length	180.975 to 450.85 mm / 222.25 to 600.075 mm
Registration Accuracy	±0.10 mm
Drying Options	IR / Hot Air / UV / LED UV
Compatible Ink Types	Water-Based / Solvent-Based / UV / LED UV

Note: The available printing repeat range depends on the selected plate cylinder, gear pitch and machine configuration.

Product Details

Back-Side Printing Unit

Cross-Cutting and Conveyor Delivery

Inline Slitting Unit

Turret Rewinding System

Web Turning Unit
